Beacon D

Eddy current displacement sensor for homing and surface scanning in 3D printers.

Works with Kalico and Klipper. Comes fully assembled and includes a USB cable.

WARNING: Requires a conductive surface or substrate on printer bed to work. Bed stacks that include oversized fixed magnets are not recommended and may not work with Beacon. BTT Pi and BTT Manta are known to cause damage to Beacon devices, they must be used with an inline hub or a different SBC.

Ships in 1-3 days.

Description

Eddy Current Surface Scanner for 3D Printers:

  • Native displacement output – no z motion necessary for sensing
  • Scan mode mesh – dense grid sampling in a matter of seconds
  • Low thermal drift – minimized by design, active compensation for everything else

Printer Compatibility:

  • Firmware: Klipper
  • Connection: USB to Single Board Computer
  • Bed: Conductive surface or substrate, 400um or thicker. Bare steel, WHAM BAM, PEI coated or laminated steel, etc. Use with beds employing large or oversized fixed magnets is not recommended.

Includes:

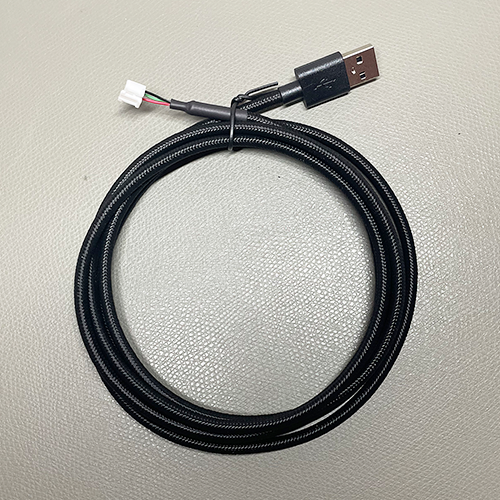

  • 1x Custom USB cable (6ft free or 10.5ft for an additional fee)
  • 1x Beacon board (main PCB, sensing PCB, headers, cable connector)

Variations:

  • Normal: Best for Annex or StealthBurner Printers.

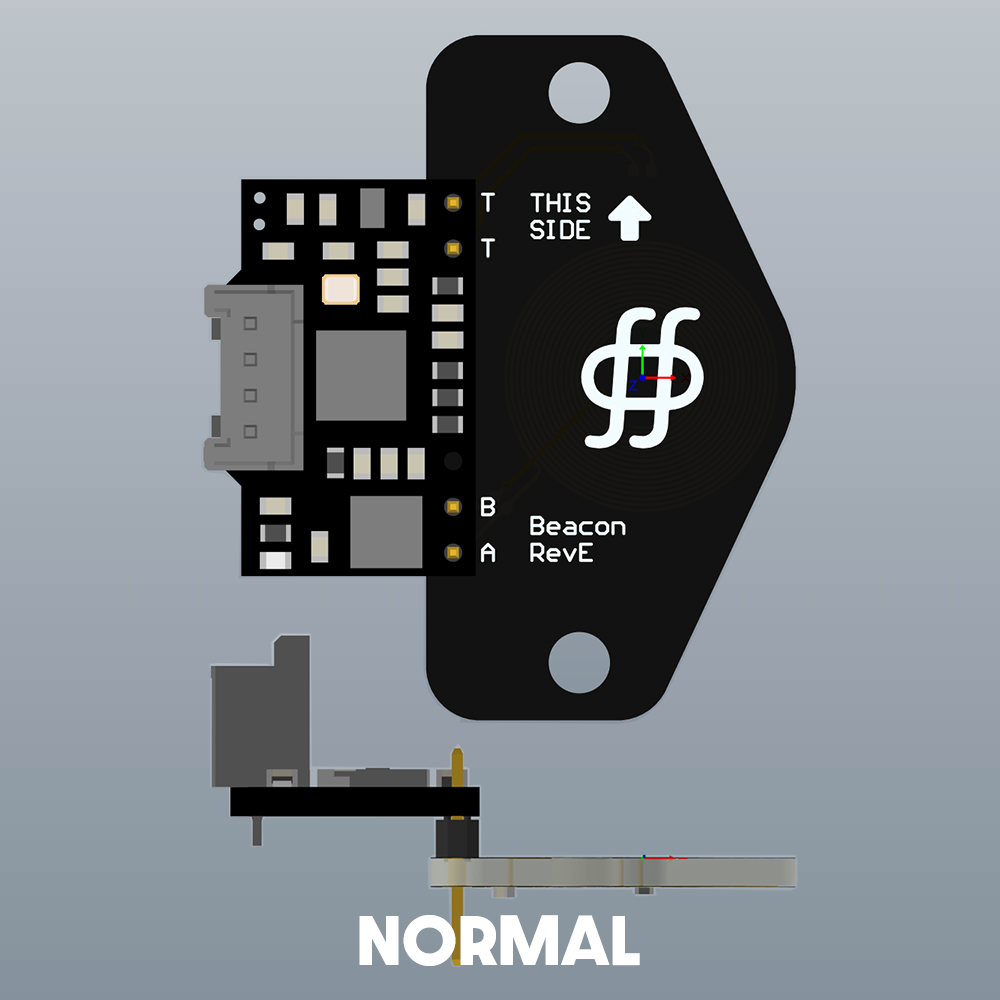

  • Normal: Main PCB and sensing PCB are assembled flat

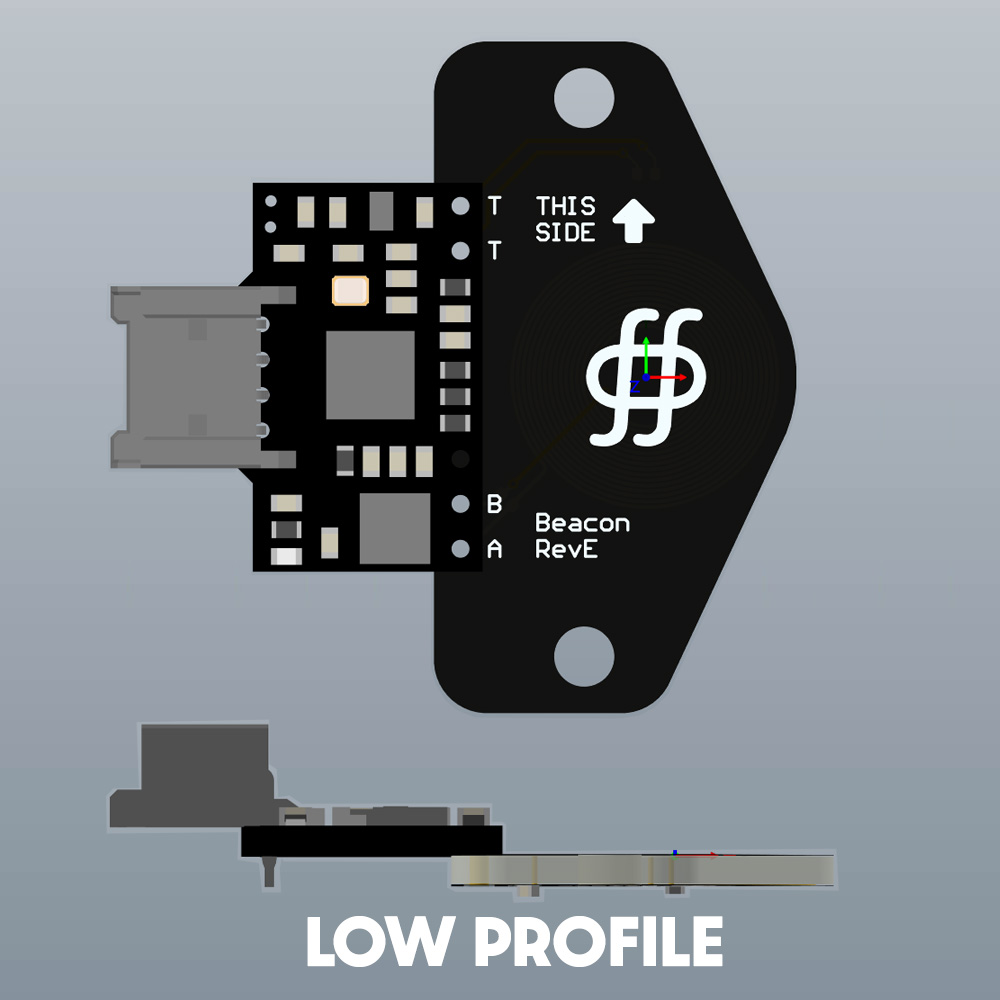

  • Low-Profile: Best for VzBot, RatRig, or K3 Frostbite Printers.
  • Low-Profile: Main PCB and sensing PCB are assembled flat (as well as the cable connector)

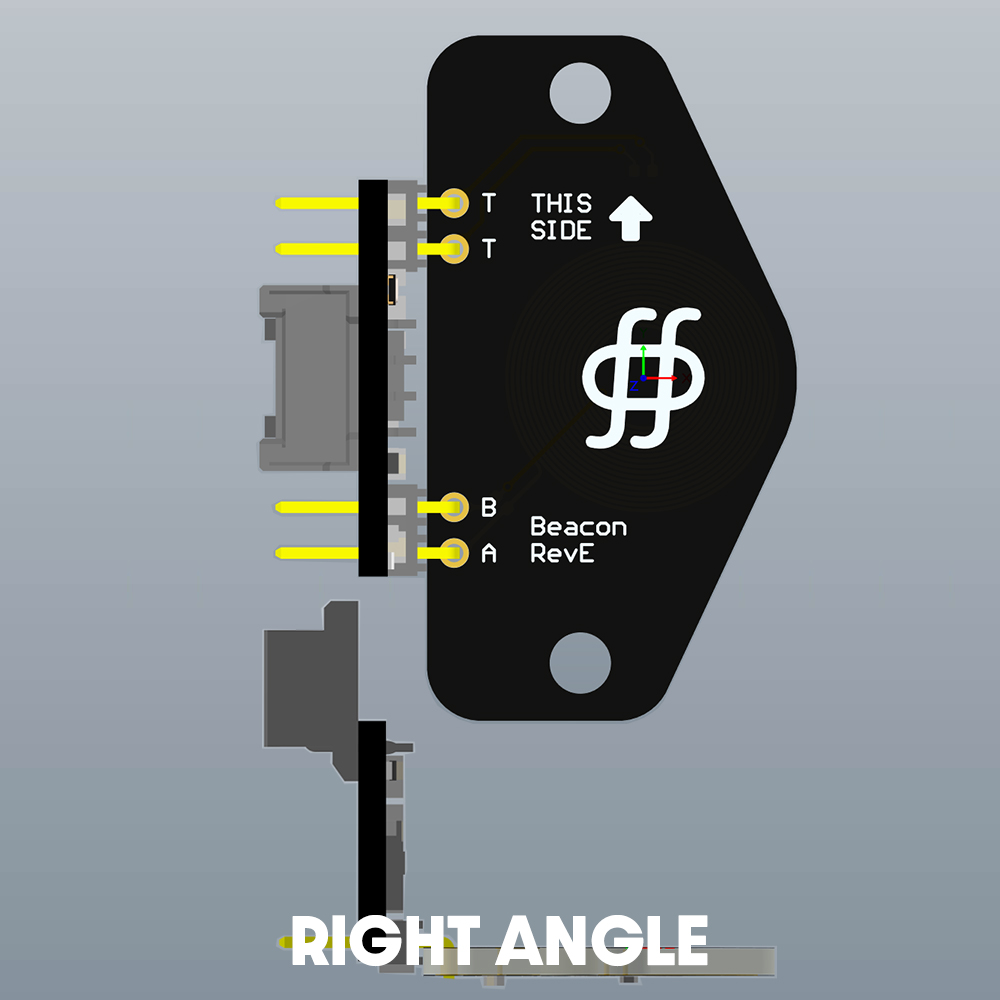

  • Right Angle: Main PCB and sensing PCB are assembled at 90 degrees to each other

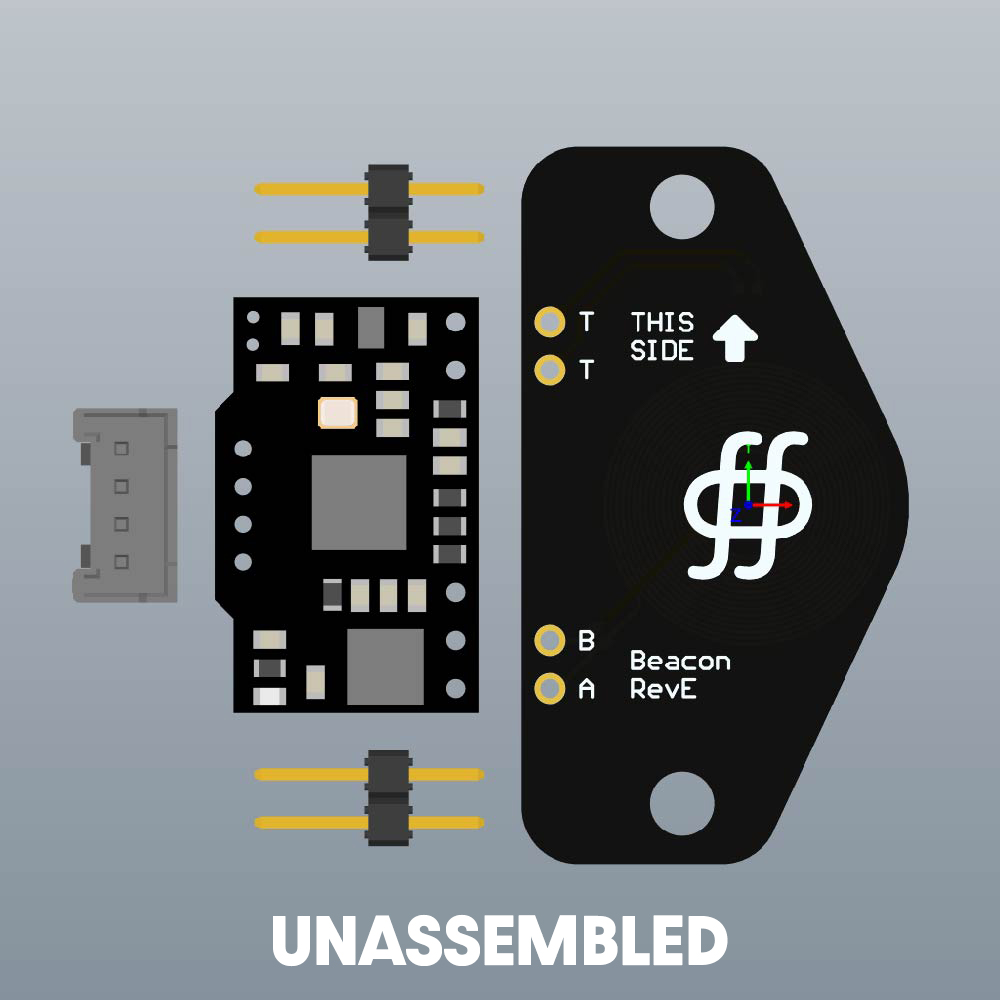

  • Unassembled: All the parts come un-assembled (instructions)

Warranty:

  • 30-day standard warranty (following the date of delivery to you)
  • Using a BTT Pi or BTT Manta board with the Beacon without an inline hub voids the warranty

Additional information

Variation

Normal, Low Profile, Right Angle
Cable Length

6ft, 10.5ft
Size

38mm x 32mm
Form-Factor

Stacked
Weight

3.5 grams
Bandwith

1kHz
Resolution

0.5 um
Temperature Rating

120C sensor, 110C amplifier
Sensitivity

Base
Thermal Drift

Base
Coil Material

Base
Accelerometer

No
Firmware

Klipper
Data Link

USB (cable included)
Input Protection

Basic
Bed Material

Conductive surface or substrate, 400um or thicker
Bare steel, WHAM BAM, PEI coated or laminated steel, etc.
