BEACON

EDDY CURRENT SURFACE SCANNER

The world’s first 3D printer surface scanner for a sub-micron bed mesh in seconds.

Beacon RevD

Modular First Generation

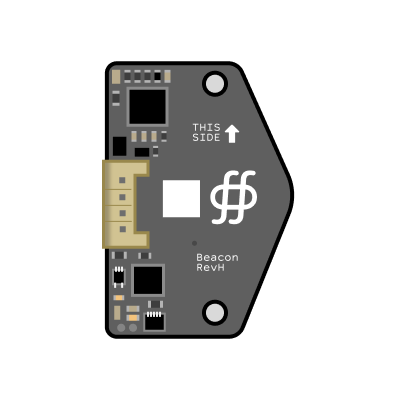

Beacon RevH

Accelerated Second Generation

Nervous about your first layer?

Beacon is so fast, it scans right before the first layer, measuring exactly what you’re printing on.

1

ATTACH
Attach the 3.5g Beacon to your printer toolhead.

2

SCAN
Scan your bed in 20 seconds or less with 0.5µm (0.0005mm) resolution.

3

PRINT
Print with the confidence of a precise last second scan.

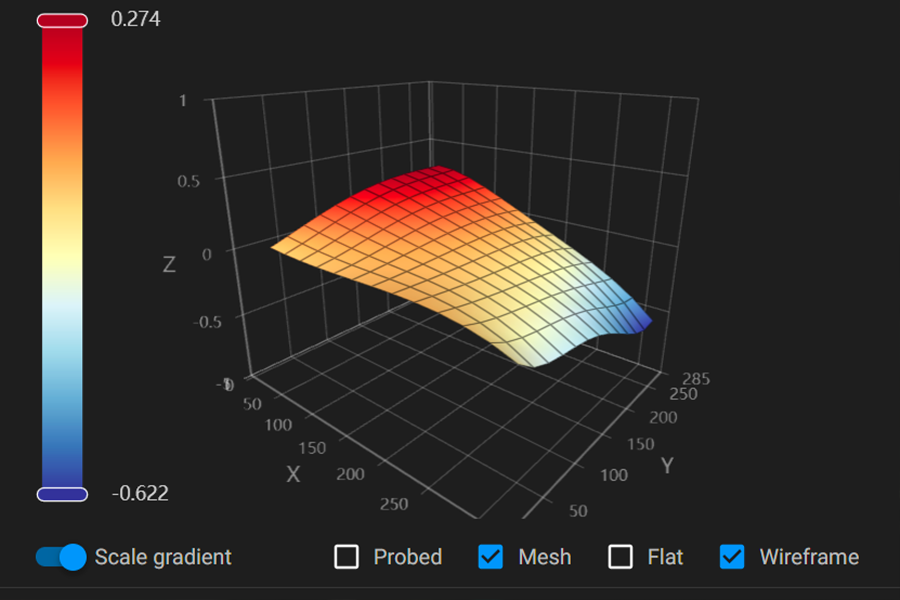

Fast Surface Mesh

Beacon directly measures distance for rapid mesh construction at up to 500mm/s, without ever moving the z axis.

RevD-her

Uncompromising Precision

Meticulously optimized to achieve 0.5um resolution at 1k samples per second with <350nm typical standard deviation.

High Temperature

Rated up to 115°C ambient and designed for minimal thermal drift and equipped with active temperature compensation.

Mesh-her
Graph-her

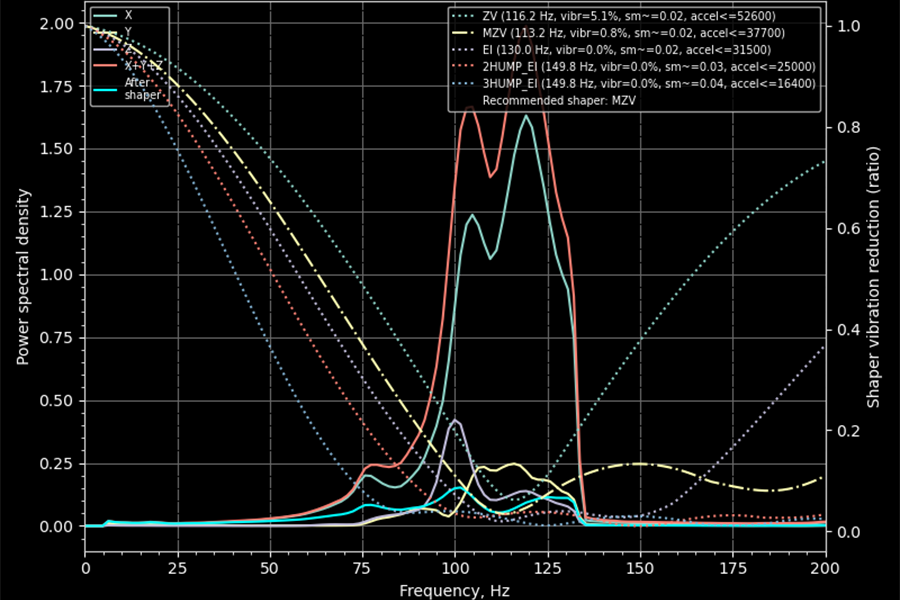

On-Board Accelerometer

Klipper’s first high temperature rated accelerometer for simplifying resonance measurement and compensation.

2nd Generation Design​

Optimized materials and design achieve +15% sensitivity, -40% thermal drift, and improved durability against minor abrasions.

Vez-her

Beacon Comparison

Beacon D
Beacon H
Dimensions
38mm x 32mm
38mm x 27.5mm
Form Factor
Stacked
Planar
Temp Rating
115°C
115°C
Sensitivity
-
+15%

Pre-Compensation

Thermal Drift
-
-40%
Accelerometer
-
Fully Rated (100°C/115°C)
Coil Material
-
Improved performance
Connection
USB (cable included)
USB (cable included)
Price
$79.99 $64.99
$89.99 $79.99
Purchase

Beacon Technology

Beacon uses eddy current to scan your print surface at the sub-micron level for consistent results and high repeatability.

20sec

HIGH PERFORMANCE
Total mesh time for a typical size printer.

0.5µm

HIGH RESOLUTION
Native displacement measurement with sub-micron (0.0005mm) precision.

1kHz

HIGH BANDWIDTH
Dense grid sampling with no z motion.

<350nm

LOW NOISE
Standard deviation under typical operating conditions.

3.5g

LOW MASS
Lightweight at 3.5g for minimal impact on machine dynamics.

115C

LOW DRIFT
Precision components for thermal stability and low aging.
